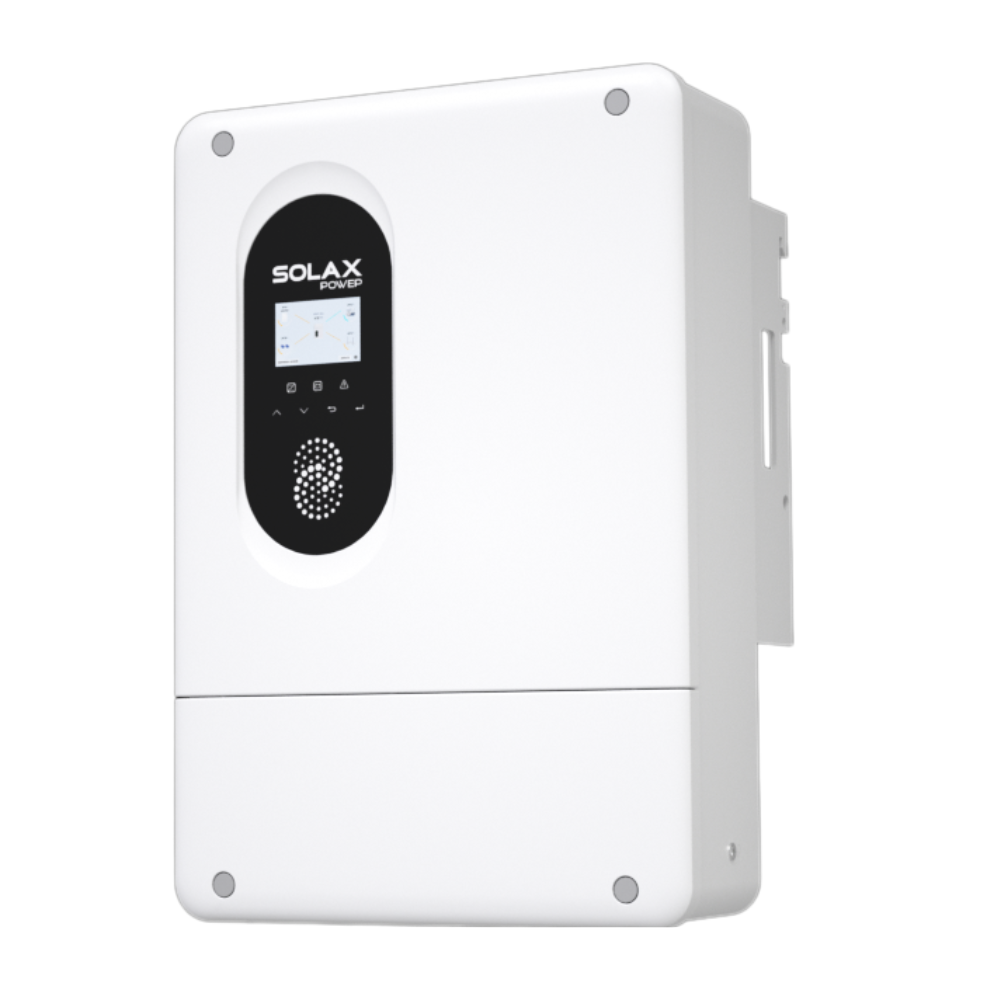

SolaX X1‑Lite‑LV 12 kW Hybrid Solar Inverter

₨ 525,000 Original price was: ₨ 525,000.₨ 510,000Current price is: ₨ 510,000.
In Stock

High Performance & Power Output

Produces 12 kW rated AC power for larger residential and commercial loads.

Peak EPS output up to 24 kVA supports surge loads like air conditioners, pumps, and compressors.

UPS‑style fast switchover (< 6 ms) ensures uninterrupted power during grid outages.

Advanced Solar & Battery Integration

3 MPPTs with 6 PV strings enable flexible PV array designs.

Supports PV oversizing up to 200 %, maximizing solar energy harvest.

Compatible with multiple battery types (Li‑ion / lead‑acid) for flexible system design.

Smart Energy Management

Smart loads management intelligently distributes power between loads, PV, and battery.

Supports micro‑grid configurations and generator integration for versatile operations.

Global MPP scan optimizes PV performance under varying conditions.

Scalable & Reliable

Up to 3 units in parallel for expanded system capacity (on‑grid and off‑grid).

IP65 weatherproof rating for indoor/outdoor installation.

Built‑in protections including surge protection (SPD) and battery temperature monitoring.

Efficient & Safe

Max. charge/discharge current ~250 A supports fast battery charging.

Optional AFCI protection enhances fire safety

Designed for stable operation and long system lifespan.

Order on WhatsApp
In Stock
Add to wishlist
  • Rs. 1500 Flat Shipping Charges
  • Order today and pick up from your nearest Delivery outlet
  • Delivered within 3 business days of placing the order
  • 24x7 customer service
Categories: ,

Description

SolaX X1‑Lite‑LV 12 kW Hybrid Solar Inverter price in Pakistan – updated 2026

Advanced 1‑Phase Hybrid Inverter for Residential & Commercial Solar Systems

The SolaX X1‑Lite‑LV 12 kW Hybrid Solar Inverter (Model: X1‑Lite‑12.0‑LV) is a powerful low‑voltage hybrid inverter designed to integrate solar PV generation, battery storage, and grid interaction for efficient and uninterrupted power. Built for high performance, smart management, and flexible deployment, it’s ideal for larger homes, small commercial setups, and micro‑grid applications seeking reliable solar energy solutions.

Specifications:

Specification Detail
Model X1‑Lite‑12.0‑LV
Inverter Type Single‑Phase Hybrid Solar Inverter
Rated AC Output Power 12 kW
Peak EPS Backup Output 24 kVA (2× rated, 10 s)
UPS‑Level Switchover Time < 6 ms
Max Recommended PV Array Power 24 kWp DC
Maximum PV Input Voltage 600 V DC
MPPT Operating Voltage Range 50 – 550 V DC
Number of MPPT Trackers 3 MPPTs
Strings per MPPT 2 / 2 / 2
Max PV Input Current per MPPT 32 A DC
Max PV Short‑Circuit Current per MPPT 40 A DC
Battery Compatibility Lithium & Lead‑Acid (48 V DC)
Max Charge / Discharge Current ~250 A / 250 A (typical)
Nominal AC Voltage 1/N/PE, 220 / 230 / 240 V AC
Rated AC Output Current ~52.2 A @ 230 V AC
Max AC Apparent Output ~13.2 kVA
Grid Frequency 50 / 60 Hz
Protection Rating IP65 (dust & water resistant)
Dimensions (W × H × D) 462 × 651 × 280 mm
Net Weight ~38.5 kg
Cooling Smart Air Cooling
Safety Protection Type II SPD (AC/DC), Battery temp detection, Optional AFCI
