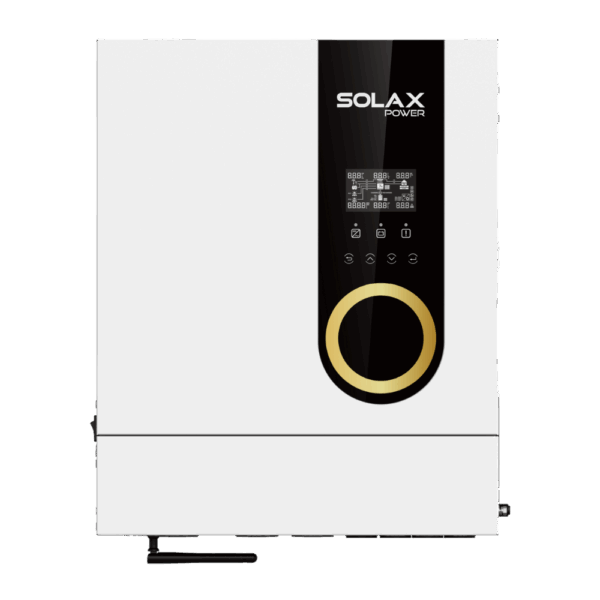

SolaX X1-VAST 10 kW Hybrid Solar Inverter
SolaX X1‑Lite‑LV 12 kW Hybrid Solar Inverter
SolaX X1‑Lite‑LV 8 kW Hybrid Inverter
SolaX X1‑RENO‑LV 8 kW Hybrid Inverter
SolaX OG Series Off‑Grid Inverter – 6 kW (OG648)
SolaX OG Series Off‑Grid Inverter – 5 kW (OG548)

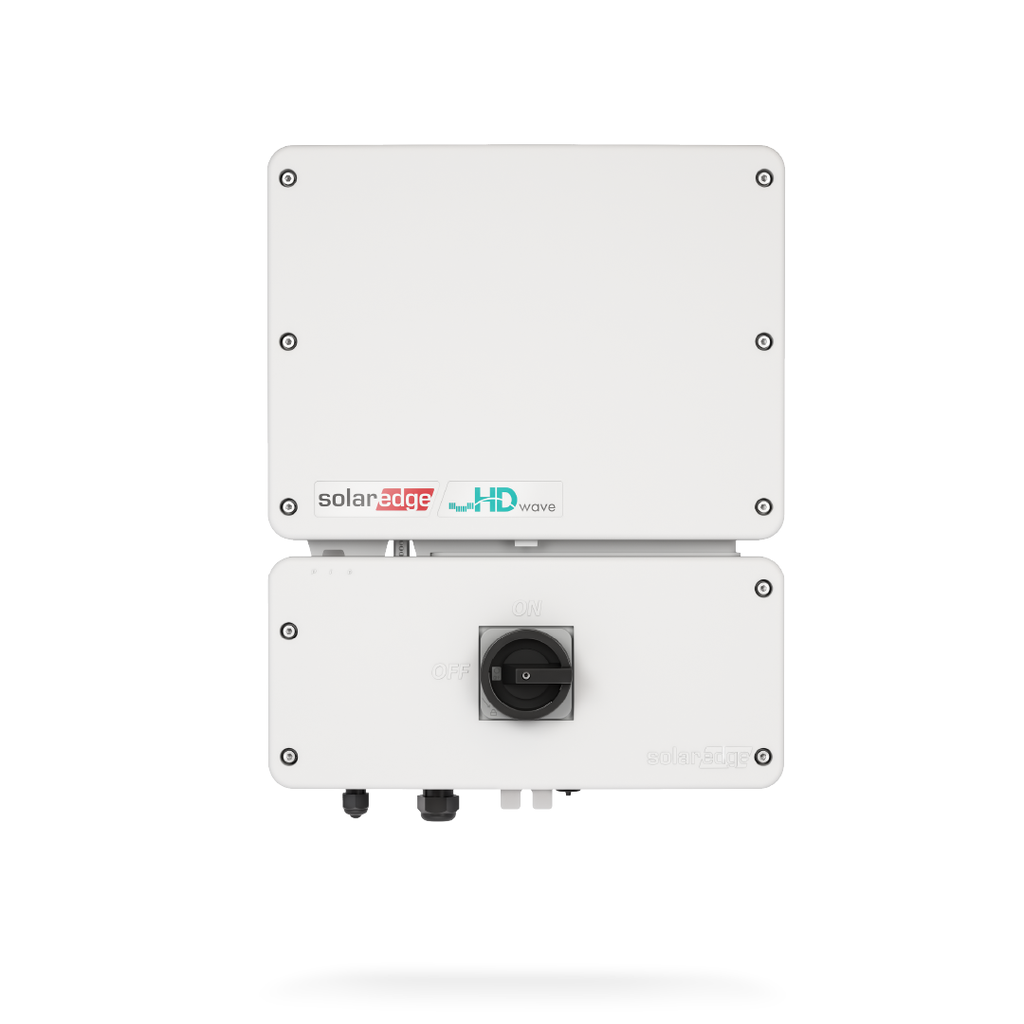

SolarEdge SE5000H – 5 kW HD‑Wave Single‑Phase Solar Inverter
HD‑Wave Conversion Technology – Ultra‑high efficiency up to ~99.2 % for max energy production.
Optimized for SolarEdge Power Optimizers – Module‑level optimization improves yields.
Integrated Safety – Rapid shutdown, arc‑fault protection, anti‑islanding, and ground–fault detection.
Easy Smartphone Commissioning – Set up quickly via SolarEdge SetApp.
Compact & Lightweight – Simplified installation with natural convection cooling (fanless).
Durable Weather‑Resistant Design – IP65/NEMA 4X rated for outdoor use.
Remote Monitoring – Real‑time performance via app or web interface.
Flexible Oversizing – Allows DC input oversizing (~155 %), increasing system size without upgrading inverter.
This product has been added to 1 people'scarts.
- Rs. 1500 Flat Shipping Charges
- Order today and pick up from your nearest Delivery outlet
- Delivered within 3 business days of placing the order
- 24x7 customer service
Description
SolarEdge SE5000H – 5 kW HD‑Wave Single‑Phase Solar Inverter price in Pakistan -updated 2026
The SolarEdge SE5000H 5 kW solar inverter utilizes cutting‑edge HD‑Wave technology to achieve high efficiency and superior performance while reducing heat and energy loss. Engineered for solar systems using SolarEdge power optimizers, it enables module‑level energy harvest, precise production monitoring, and enhanced safety with integrated rapid shutdown and arc‑fault protection. Lightweight and compact, with robust weatherproof protection, the SE5000H is suitable for both indoor and outdoor installation. Quick setup via SolarEdge SetApp simplifies commissioning, and smart communication options (Wi‑Fi, RS485, Ethernet) support remote monitoring and control..
Specifications:
| Category | Parameter | Specification |
|---|---|---|
| AC Output (Grid Side) | Rated AC Power Output | 5000 VA |
| Max AC Power Output | 5000 VA | |
| Nominal AC Voltage | 220 V / 230 V / 240 V | |
| AC Voltage Range | 184 V – 264.5 V | |
| Max Continuous Output Current | ~21–23 A | |
| Frequency Range | 50 / 60 Hz | |
| Power Factor | 1.0 (adjustable −0.9 to 0.9) | |
| DC Input (Solar Side) | Max DC Input Power | ~7750 W |
| Max DC Voltage | 480 V DC | |
| Nominal DC Input Voltage | ~380 V DC | |
| Max DC Input Current | ~13.5–15.5 A | |
| Transformer‑less / Ungrounded | Yes | |
| Efficiency | Maximum Efficiency | ~99.2 % |
| Weighted CEC Efficiency | ~99 % | |
| Night Power Consumption | < 2.5 W | |
| Protections & Safety | Anti‑Islanding Protection | yes |
| Integrated Rapid Shutdown | yes | |
| Arc‑Fault Protection (AFCI) | yes | |
| Ground‑Fault Detection | yes | |
| Reverse Polarity Protection | yes | |
| Communication & Monitoring | Built‑in Monitoring | Module‑Level Monitoring Supported |
| Communication Ports | RS485, Ethernet, Wi‑Fi (optional) | |
| App Setup | SolarEdge SetApp | |
| Mechanical & Environmental | Protection Rating | IP65 (Indoor/Outdoor) |
| Cooling | Natural Convection (Fanless) | |
| Operating Temp Range | −40 °C to +60 °C | |
| Dimensions | ~450 × 370 × 174 mm | |
| Weight | ~11.4 kg | |
| Warranty | Standard | ~12 years (extendable to 20/25 yrs) |
