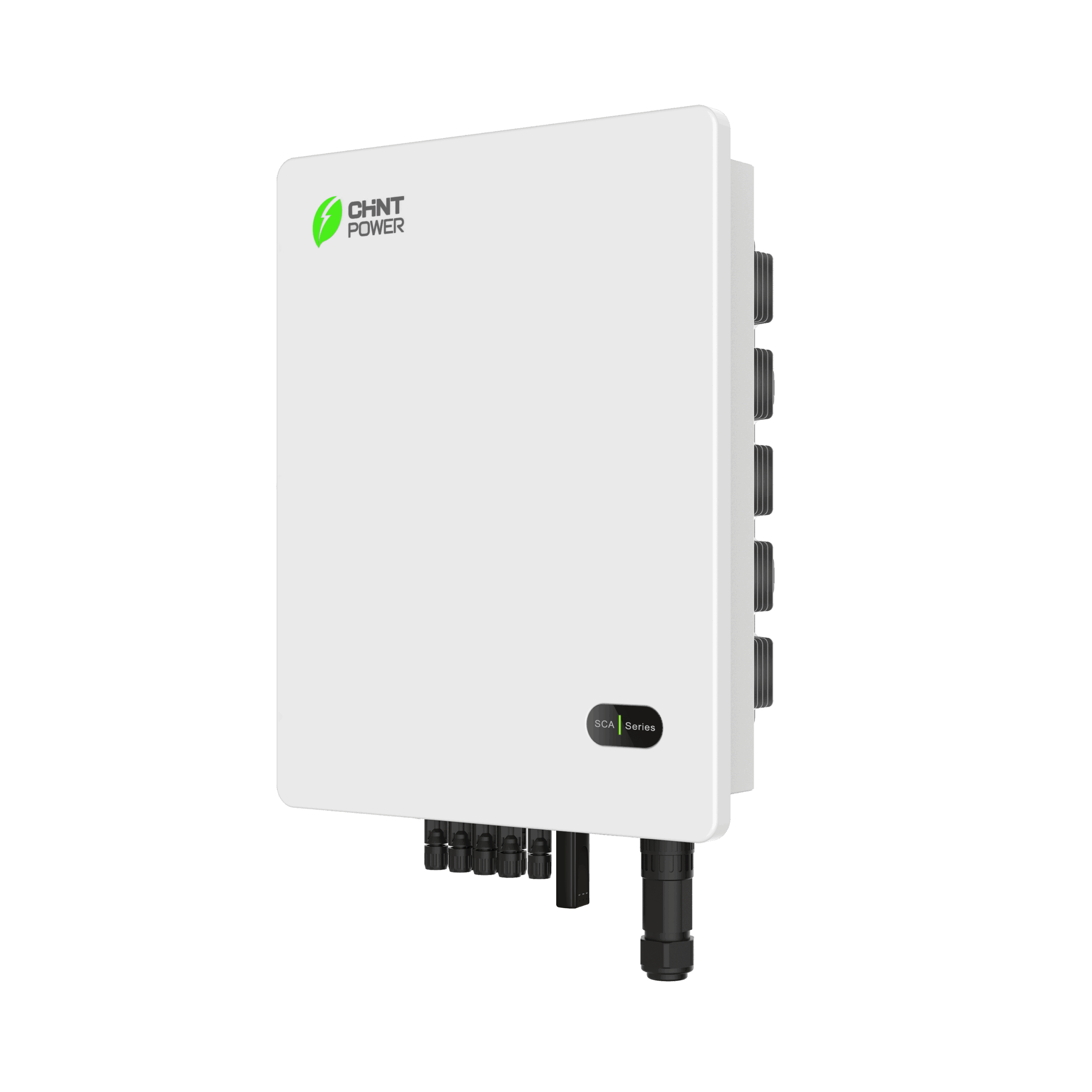

SCA5~25K-T-EU Three-Phase String Inverter 5~25kW • 2 MPPTs • 1100Vdc System

₨ 375,000 Original price was: ₨ 375,000.₨ 350,000Current price is: ₨ 350,000.
In Stock

Display: LED + APP (Bluetooth)

DC Voltage: Max: 1100 Vdc, Rated: 615 Vdc

AC Current: Max: 50 A / 60 A

Power Factor: >0.99 (±0.8 adjustable)

Weight: 37 kg / 37.5 kg

AC Power: Rated: 30000W / 36000W, Max: 33000VA / 39600VA

Efficiency: Max: 98.15% / 98.73%, Euro: 97.91% / 98.05%

Topology: Transformerless

Communication: RS485 / Wi‑Fi (Standard), 4G / Ethernet (Optional)

Ingress Protection: IP66

Operating Temperature Range: -25℃ to +60℃

Dimensions: 684 mm (W) × 488 mm (H) × 269 mm (D

Order on WhatsApp
In Stock
Add to wishlist
  • Rs. 1500 Flat Shipping Charges
  • Order today and pick up from your nearest Delivery outlet
  • Delivered within 3 business days of placing the order
  • 24x7 customer service
Category:

Description

SCA5~25K-T-EU Three-Phase String Inverter 5~25kW • 2 MPPTs • 1100Vdc System updated 2026

While Pakistani are combating with historic high electricity bills and inflation, solar energy appears to be the last resort for both households and industries. The demand for quality, reliable solar inverters keeps increasing; what seems to spearhead awareness of renewable energy solutions appears at the forefront. One of them is the Chint SCA5~25K-T-EU Three-Phase String Inverter 5~25kW • 2 MPPTs • 1100Vdc System, which has been in great limelight of late due to incessant performance coupled with a price advantage.

Product Overview

Efficient
2 MPPTs with Max. Efficiency 98.12%;
Easily compatible with various PV modules based on max. input current 15A per string;
AFCl function standard;
150% DC/AC ratio;
Lower startup & wider MPPT voltage
Smart
Communication interfaces [RS485/Wi-Fi (Standard) & 4G (Optional)];
Built-in Bluetooth and App for local and remote monitoring;
Support zero export by meter
Safe
Durable and robust component;
IP66 &C5 protection;
Type II SPD for both DC and AC
Specification:
DC Input
Max. DC Voltage 1100Vdc
MPPT Operating Voltage Range 200 – 1000Vdc
Start Voltage 250Vdc
Rated DC Voltage 600Vdc
Number of MPPT 2
Number of DC Connection Sets per MPPT 1 2
Max. input current per MPPT 15A 30A
Max. DC short-circuit current per MPPT 23A 45A
DC Disconnection Type Integrated Switch
AC Output
Rated AC Power 5kW 6kW 8kW 10kW 15kW 20kW 25kW
Max. AC Power 5.5kVA 6.6kVA 8.8kVA 11kVA 16.5kVA 22kVA 27.5kVA
Rated AC Voltage 380 / 400V
AC Voltage Range1 277 – 520V
Grid Connection Type 3 / N / PE
Max. AC Current 8.4A 10A 13.4A 16.7A 25A 33.4A 41.8A
Grid Frequency 50 / 60Hz
Grid Frequency Range1 45-55 / 55-65Hz
Power Factor (cosφ) >0.99(±0.8 adjustable)
Current THD < 3%
System Data
Topology Transformerless
Max. Efficiency 97.82% 97.87% 97.69% 97.66% 97.87% 97.87% 98.12%
Euro Efficiency 96.93% 96.96% 97.41% 97.41% 97.13% 97.42% 97.87%
Protection
DC reverse connection protection Yes
AC short circuit protection Yes
Leakage current protection Yes
24h Grid monitoring Yes
Ground fault monitoring Yes
Surge Protection DC Type II / AC Type II
AFCI Yes
Environment Data
Ingress Protection IP66
Cooling Method Cooling Fans
Operating Temperature -25°C to +60°C
Ambient Humidity 0 – 100%
Altitude 2000m
Display and Communication
Display LED + APP(Bluetooth)
Communication RS485 / Wi-Fi (Standard) & 4G (Optional)
Mechanical Data
Dimensions (W*H*D) 416 * 526 * 204.5mm
Weight 17kg 21kg
DC Connection Type MC4 (Max. 6 mm² )
AC Connection Type OT/DT Terminal (Max.35 mm²)
