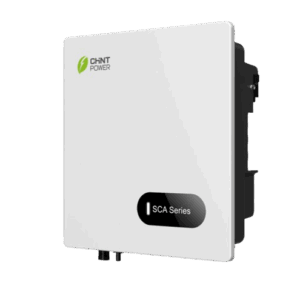

SCA100/125K-T-EU Three-Phase String Inverter 100/125kW • 12 MPPTs • 1100Vdc System

₨ 2,100,000 Original price was: ₨ 2,100,000.₨ 1,600,000Current price is: ₨ 1,600,000.
In Stock

Display: LED + APP (Bluetooth)

DC Voltage: Max: 1100Vdc, Rated: 620Vdc

AC Current: Max: 151.9A / 189.9A

Power Factor: >0.99 (±0.8 adjustable)

Weight: ~85 kg

AC Power: Rated: 100000W / 125000W, Max: 110000VA / 137500VA

Efficiency: Max: 98.6% / 98.6%, Euro: 98.4% / 98.4%

Topology: Transformerless

Communication: RS485 / Wi-Fi (Standard), 4G / Ethernet (Optional)

Ingress Protection: IP66

Operating Temperature Range: -30℃ to +60℃

Dimensions: ~1050 mm (W) × 700 mm (H) × 360 mm (D)

This product has been added to 1 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Rs. 1500 Flat Shipping Charges
  • Order today and pick up from your nearest Delivery outlet
  • Delivered within 3 business days of placing the order
  • 24x7 customer service
Category:

Description

SCA100/125K-T-EU Three-Phase String Inverter 100/125kW • 12 MPPTs • 1100Vdc System- Updated 2026

While Pakistani are combating with historic high electricity bills and inflation, solar energy appears to be the last resort for both households and industries. The demand for quality, reliable solar inverters keeps increasing; what seems to spearhead awareness of renewable energy solutions appears at the forefront. One of them is theSCA100/125K-T-EU Three-Phase String Inverter 100/125kW • 12 MPPTs • 1100Vdc System, which has been in great limelight of late due to incessant performance coupled with a price advantage.

Efficient
12 MPPTs with Max. Efficiency 98.50%;
Easily compatible with various PV modules based on max. input current 30A per MPPT;
Superb temperature performance, full power at 45°C;
150% DC/AC ratio
Smart
Communication interfaces [RS485/Wi-Fi (Standard) & 4G (Optional)];
Built-in Bluetooth and App for local and remote monitoring;
Support zero export by meter+CT

Safe

Durable and robust component;
IP66&C5 protection;
Type II SPD for both DC and AC

specifications

DC Input
Max. DC Voltage 1100Vdc
MPPT Operating Voltage Range 200 – 950Vdc
Start Voltage 300Vdc
Rated DC Voltage 615Vdc
Number of MPPT 12
Number of DC Connection Sets per MPPT 2
Max. input current per MPPT 30A
Max. DC short-circuit current per MPPT 45A
DC Disconnection Type Integrated Switch
AC Output
Rated AC Power 100kW 125kW
Max. AC Power 110kVA 125kVA
Rated AC Voltage 380 / 400V
AC Voltage Range1 322 – 528V
Grid Connection Type 3 / N / PE
Max. AC Current 167.2A 190A
Grid Frequency 50 / 60Hz
Grid Frequency Range1 45-55 / 55-65Hz
Power Factor (cosφ) >0.99(±0.8 adjustable)
Current THD < 3%
System Data
Topology Transformerless
Max. Efficiency 98.11% 98.50%
Euro Efficiency 98.00% 98.10%
Protection
Anti-islanding Protection Yes
DC reverse polarity protection Yes
DC overvoltage protection Yes
Insulation resistance detection Yes
Residual Current Monitoring Unit Yes
Ground fault monitoring Yes
AC short circuit protection Yes
AC overvoltage protection Yes
PV string monitoring Yes
Dry contact remote control Yes
I-V curve scan Yes
AFCI Yes
Surge Protection DC Type II / AC Type II
Environment Data
Ingress Protection IP66
Cooling Method Cooling Fans
Operating Temperature-30°C to +60°C
Ambient Humidity 0 – 100%
Altitude 4000m
Display and Communication
Display LED + APP(Bluetooth)
Communication RS485/Wi-Fi (Standard) & 4G (Optional)
Mechanical Data
Dimensions (W*H*D) 1050 * 660 * 340.5mm
Weight 90kg
DC Connection Type MC4 (Max. 6mm²)
AC Connection Type OT/DT Terminal (Max. 240mm²
