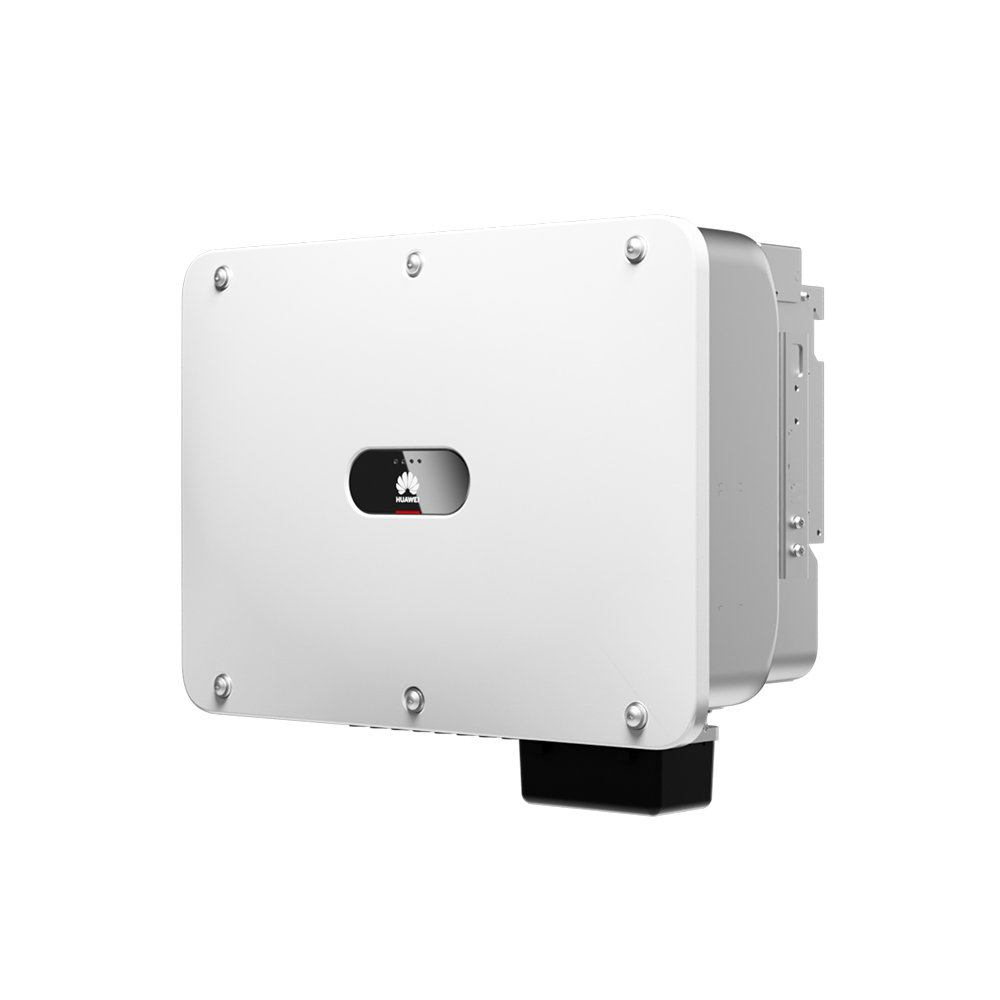

Huawei SUN2000‑30KTL‑M3 30 kW Three‑Phase On‑Grid Solar Inverter

₨ 655,000 Original price was: ₨ 655,000.₨ 620,000Current price is: ₨ 620,000.
In Stock

High Efficiency: Up to ~98.7 % conversion efficiency for superior power harvest.
Multi‑MPPT Tracking: Four independent MPPTs maximize yield under varying panel conditions.
Smart Communication: Supports RS485, WLAN/Ethernet, and optional cellular (4G/3G/2G) for remote monitoring through Huawei’s FusionSolar platform.
Robust Protection: IP66 rating ensures outdoor durability; features PID recovery, surge protection, anti‑islanding protection, and arc fault detection.
Natural Cooling: Fanless cooling reduces maintenance and improves reliability.
Wide Voltage Range: Supports broad operating ranges for flexible PV string design.
Easy Setup: Designed for straightforward installation and commissioning with the FusionSolar App.

This product has been added to 12 people'scarts.

Order on WhatsApp
In Stock
Add to wishlist
  • Rs. 1500 Flat Shipping Charges
  • Order today and pick up from your nearest Delivery outlet
  • Delivered within 3 business days of placing the order
  • 24x7 customer service
Categories: ,

Description

Huawei SUN2000‑30KTL‑M3 30 kW Three‑Phase On‑Grid Solar Inverter price in Pakistan – updated 2026

The Huawei SUN2000‑30KTL‑M3 is a high‑performance 30 kW three‑phase on‑grid solar inverter designed for commercial and industrial photovoltaic (PV) systems. It converts DC power from solar panels into AC power for feeding into the electrical grid with high efficiency and robust protection. Integrated with smart communication and safety systems, it’s ideal for medium to large solar installations.

Specifications:

Specification Detail
Model SUN2000‑30KTL‑M3
Type Three‑phase on‑grid solar inverter
Rated Output Power 30,000 W (30 kW)
Max Apparent Power ~33,000 VA
Number of MPPTs 4 (supports up to 8 strings)
Max. Input Voltage (DC) 1,100 V
MPPT Operating Voltage Range ~200 V – 1,000 V
Start Voltage ~200 V
Max Input Current per MPPT ~22 – 30 A (varies by vendor)
Output Voltage (AC) 3‑phase 400 V
Rated Output Current ~43.3 A
Efficiency (Max) ~98.7 %
European Efficiency ~98.4 %
Protection Rating IP66 (dust/water resistant)
Communication Interfaces RS485, WLAN/Ethernet (via Smart Dongle), optional 4G/3G/2G
Cooling Method Natural convection (fanless)
Dimensions (W×H×D) ~640 × 530 × 270 mm
Weight (approx.) ~43 kg
Operating Temp Range ~‑25 °C to 60 °C
Connector Types DC: MC4; AC: Waterproof + terminal
Grid Standards Supports multiple global grid codes
PID Recovery Yes (integrated)
Arc Fault Detection (AFCI) Yes
Surge Protection (SPD) Type II (AC & DC)
Data Source Aggregated from Pakistan vendor listings
